Coneart – 2822D Double Wall Electric Kiln

Overview
• 8.33 Cubic Feet
• 28 wide X 22.5 deep
• Double Wall Insulation
• Kanthal A-1 Elements
• 208 or 240 Volts
• 70 or 80 Amp Breaker required
• 3 Zone Bartlett Controller at NO EXTRA CHARGE
• New Lid Lifter at NO EXTRA CHARGE CSA approved

Product Description

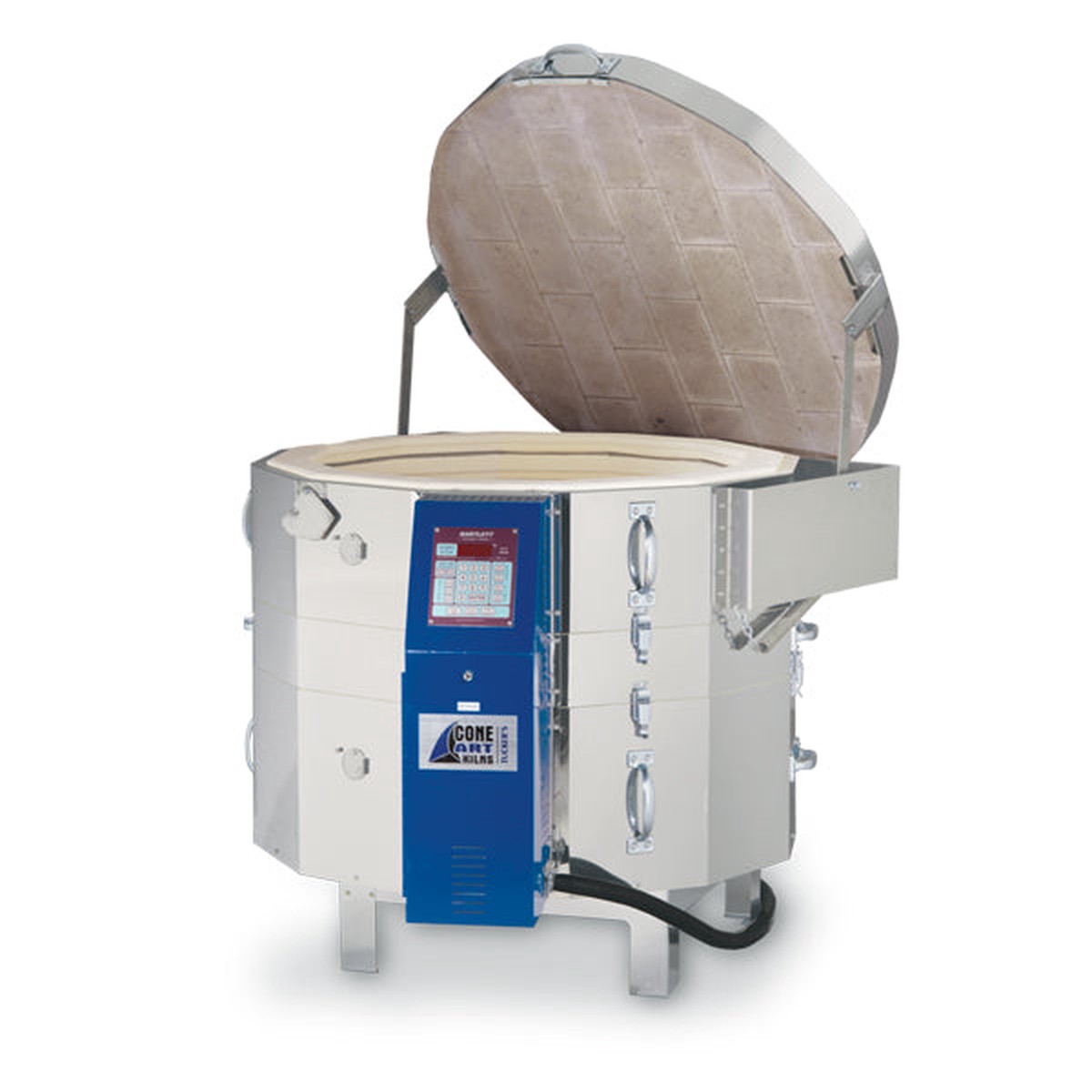

The Cone Art 2822D will easily fire to cone 10. With a 28 interior diameter this kiln is suited for 26 diameter shelves, and just like the 2822D is a little easier to reach the bottom than with standard depth kilns. 3 thermocouples and our double wall construction results in energy efficiency, and our standard element in the floor helps to ensure even firings every time. Just like the deeper models, this kiln easily disassembles into 3 sections for easy delivery. Combining our patented lid lifter with the 22.5 depth make this an ideal production kiln for baby boomers. The kiln is big enough to hold a large load while being easy on your back.

This kiln is available with either the standard V6-CF keypad or the new Genesis touch screen. The standard model is the BX2822D. The Genesis version is GX2822D.

Furniture Kit

• 8 26 half Round Shelves
• 6 1 Posts
• 6 2 Posts
• 6 4 Posts
• 6 6 Posts
• 6 8 Posts
• 2Kgs Kiln Wash

Optional upgrade from the BX (Bartlett V6-CF) control to the new GX (Bartlett Genesis touch screen controller)
This unit is the next generation of kiln controllers. It has a modern, intuitive user platform, and touch screen display. The Genesis has different user-interface levels to match the firing knowledge of the user, and a graphical display of the firings progress. It is capable of storing up to 12 custom programs with up to 32 segments each, or you can simply fire by cone number and speed. This unit is Wifi enabled. Soon users will be able to register their units with the manufacturers website. This will allow you to download software updates to your laptop, and in turn upload those updates to the controller itself. Dimensions and wiring of this unit are identical to the previous V6-CF model, so people can upgrade to the Genesis from previous models with little effort.
