L&L Easy Fire Front Loading eFL Kiln – eFL1626

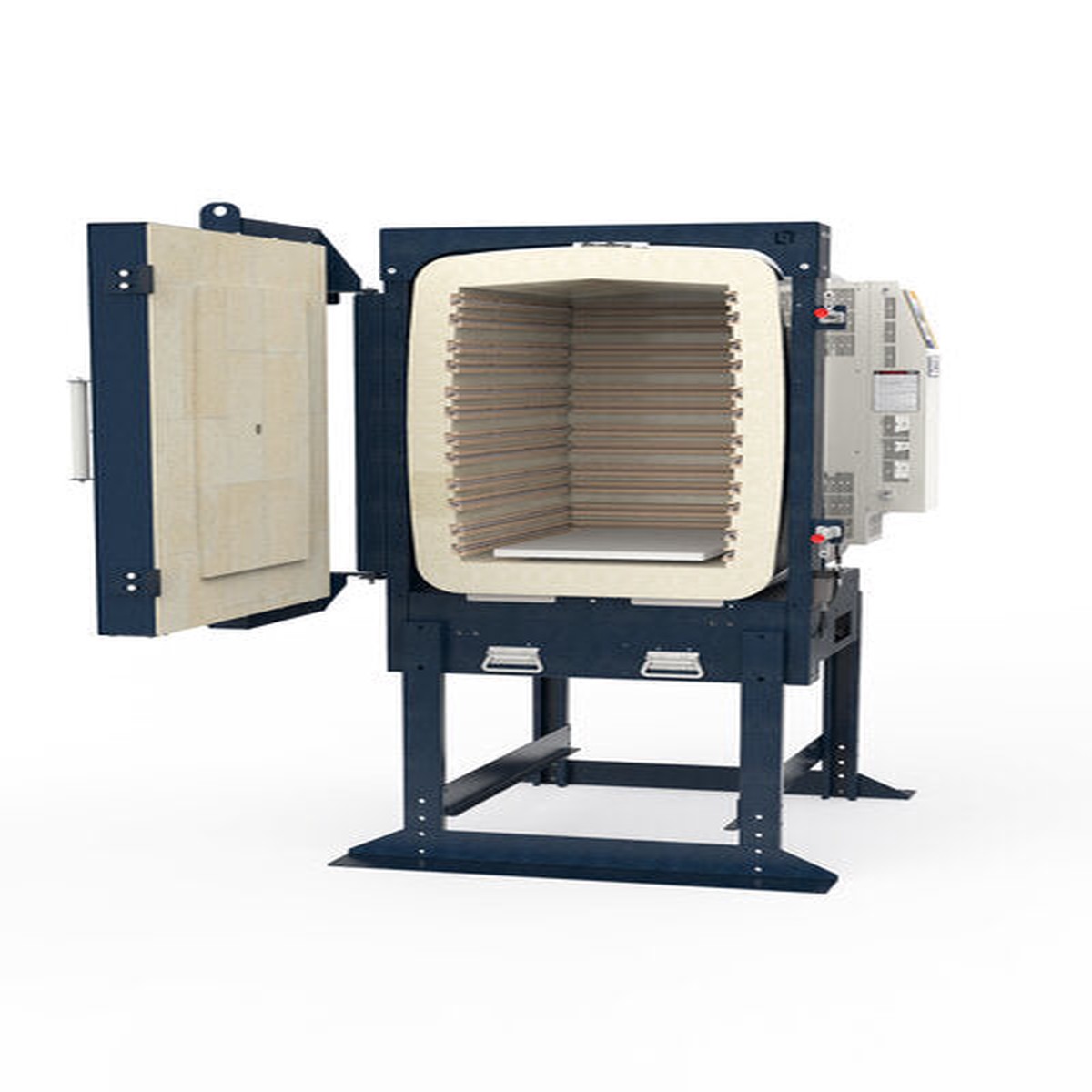

Model eFL1626 Front-Loading Kiln with with Multi-Program Three-Zoned DynaTrol mounted in an easy-open cool-firing piggy-back control panel that is angled for easy viewing of control. Kiln comes with hard ceramic element holders, thermocouple protection tubes, strong solid-top stand, and solid peephole plugs. The sides and top are arched for super strength. The base, door and door frame are formed from precision sheet metal to be both lightweight and strong. Two shelves provide storage for kiln furniture and structural support. These kilns ship easily by common carrier, are inexpensive to buy, install, and maintain. 17″W by 26″H by 26″D (6.6 cubic feet). 3″ K23 brick. NEMA 6-50 single phase or 15-50 three phase 6 foot power cord included on all models except eFL1626-208-X. Cone 10 for all voltages eFL1626-208. (See electrical specifications for details).

Basic Info

• Insulation – 3″ (76 mm) K23 Premium Firebrick on sides, back, bottom and top. 3″ K23 plus 1″ microporous insulation in door to compensate for having no elements in door.
• Loading – Front-Loading
• Sections – One Section
• Volume – 6.6 cubic ft (190 Liters)
• Kiln Weight – 450 pounds (205Kg)
• Dimensions (Inside) – 17″W by 26″H by 26″D
  43 cm Wide by 66 cm High by 66 cm Deep
• Dimension (Outside) – 33″ Wide x 73″ High x 33″ Deep
  84 cm Wide by 186 cm High by 84 cm Deep
• General Dimension Drawing – Download (PDF)

Download a One-Sheet Product Electrical and Specification Sheet(PDF)

For full electrical specifications and UL/c-MET listings please check L&L’s website (www.hotkilns.com)
