e23M-3 Pottery Kiln

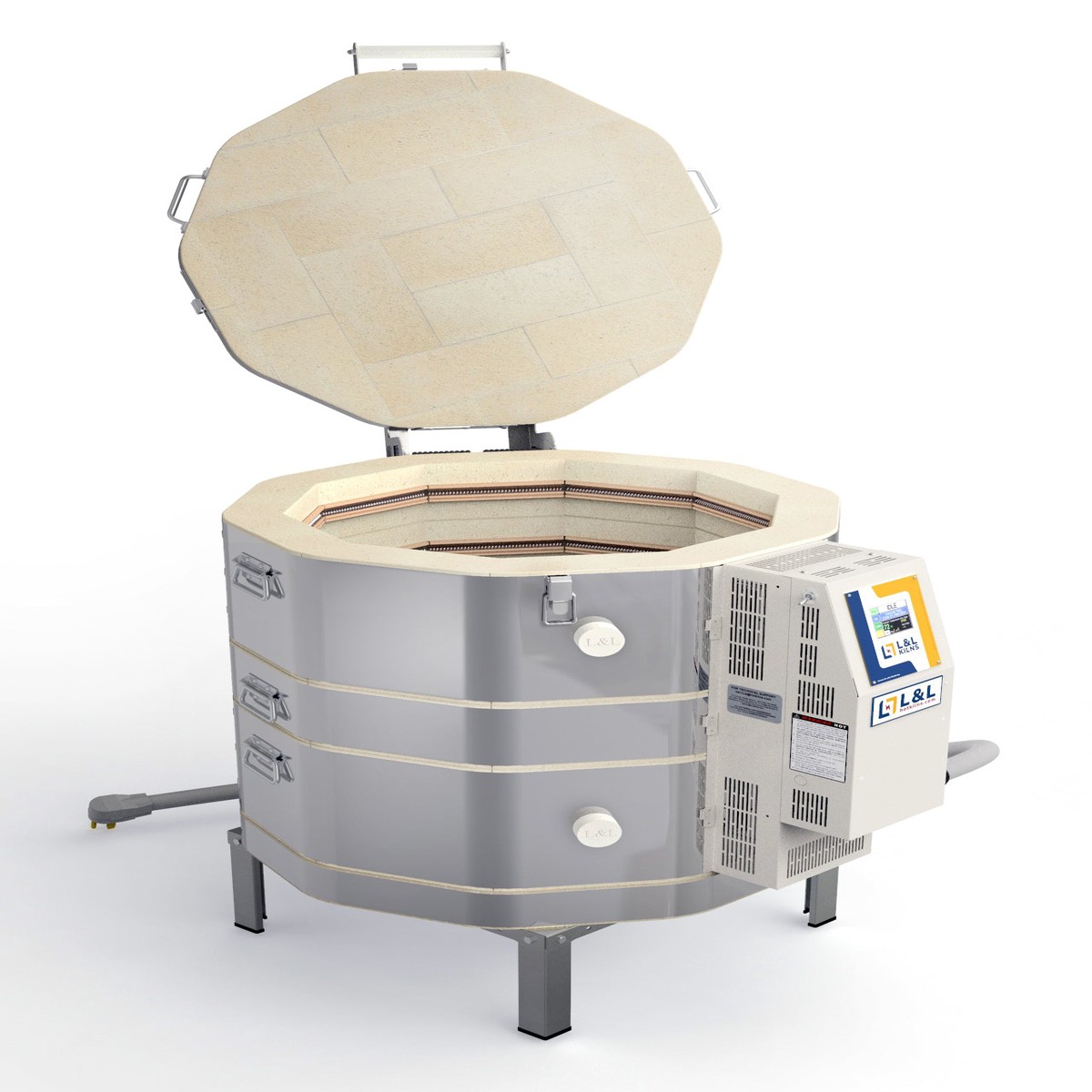

Model e23M-3 Easy-Fire Automatic Kiln with Multi-Program Two-Zoned Genesis Touchscreen control mounted in an easy-open, cool-firing, piggyback control panel that is angled for easy viewing of control. Kiln comes with hard ceramic element holders, protected thermocouples, a strong solid-top stand, an easy-lift spring hinge, and solid peephole plugs. 22-3/8″ diameter by 22.5″ high (5.5 cubic feet). 3″ K23 brick. NEMA 6-50 single phase or 15-50 three phase 6 foot power cord included. C-MET-us listed in the USA & Canada. Cone 10 for all voltages. There are two thermocouples. No charge for 3-phase versions.

Basic Info

• Insulation: 3″ K23 Firebrick
• Sections: Two 9″ high & One 4.5″ high sections
• Inside Dimensions: 22.30″ Diameter x 22.50″ High (56.642 cm Diameter x 57.15 cm High)
• Outside Dimensions: 30.00″ Wide x 40.00″ Deep x 63.00″ High (76.2 cm Wide x 101.6 cm Deep x 160.02 cm High)
• Weight: 290 lbs (132 kg)

Download a One-Sheet Product Electrical and Specification Sheet(PDF)

For full electrical specifications and UL/c-MET listings please check L&L’s website (www.hotkilns.com)
