Skutt GM818 Glass Kiln

Original price was: $2,850.00.Current price is: $147.00.

All kilns ship free!Smaller kilns ship via UPS Ground and larger kilns ship via truck. For more info click here. If you are in the...

Categories:
  • Secure Payment Processing
  • Fast & Reliable Delivery
  • Easy Returns & Exchange

All kilns ship free!

Smaller kilns ship via UPS Ground and larger kilns ship via truck.
For more info click here.


If you are in the St. Louis area our staff will DELIVER your kiln!
Did you know ALL of our full time staff members are factory trained kiln technicians?

We are not just a website, we are a brick and mortar retail store that has been in St. Louis for over 20 years.

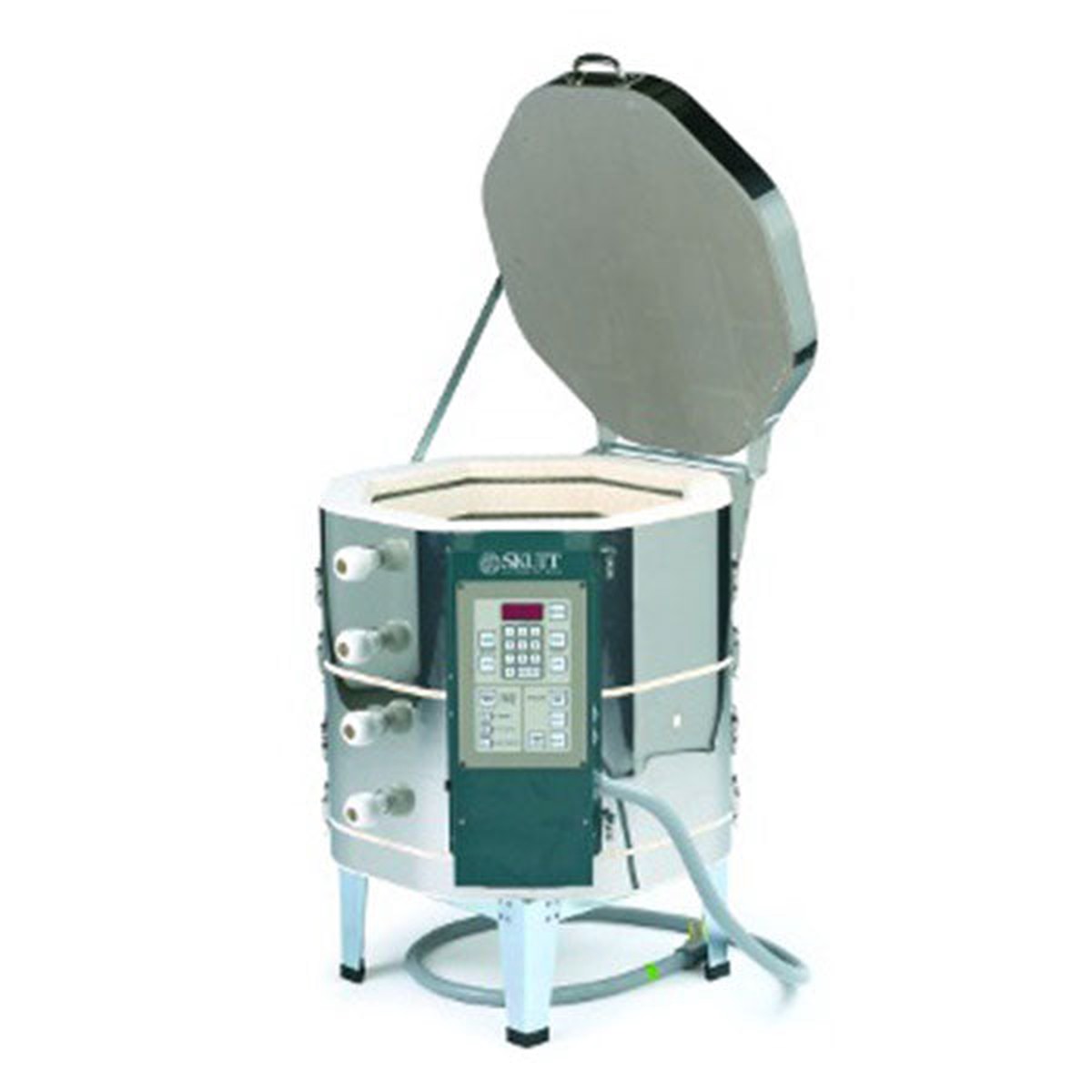

About the Skutt GM818 Glass Kiln

With a side fired kiln you need to fire a little slower but you more then make up the time with the amount of work you can get in the kiln. Great for annealing blown glass vessels too!

The Skutt GM818 is part of Skutt’s Production Glass Kiln line. This kiln is extremely versatile and allows for fusing on multiple layers. With Zone Control standard, the GM PK kilns fire evenly top to bottom. The 18″ deep chamber make this kiln ideal for large drop molds and annealing sculptures. The multi-sided sectional design makes this kiln easy to move and the coated brick lid prevents particles from falling into your work.

Controller – Sophisticated, Yet Easy to Use
Use of of Skutt’s built in programs or customize your own.

Current Sensing Technology

Skutt is one of the few brands that installs a Current Sensor in every GlassMaster Kiln.

Sectional Design
Makes moving, repair and installation much easier.

Balanced Elements
To compensate for heat loss through the lid and slab, Skutt directs more heat to these areas when they design the elements.

Zone Control
Thermocouple in each section of the kiln allows controller to control each section separately to even out temperature variations top to bottom.

The Thermocouple
Thin-walled inconel cover equals faster reaction time and higher accuracy.

The GM818 Furniture Kit Includes:
3 – 15″ x 16″ x 5/8″ Thick (8 Sided) Shelves
12 – 4″ Posts

Electrical Specifications – Skutt GM818
Phase Voltage Amps Max. Temp. Cu. Ft. Height Width Shipping Weight Copper Wire Size Breaker Size NEMA Receptacle Config
1 240 27.8 1800 2.6 18″ 17.5″ 150 LBS 8 40 6-50
1 208 26.7 1800 2.6 18″ 17.5″ 150 LBS 8 40 6-50
Download a specification sheet for the Skutt GM818 240V 1Phase
Download a specification sheet for the Skutt GM818 208V 1Phase
Download the complete Skutt Glass Kiln Color Brochure with Electrical Specs.(PDF 2.1MB) Need technical specs on installing a kiln? Here’s the brochrue for you. This covers everything from venting and hvac to flooring and electrical specs. (PDF .5MB) Make the smart choice brochure from Skutt. Skutt is the number one selling kiln in America. Find out why. (PDF .5MB)

Sophisticated, Yet Easy to Use Controller

GlassFire Mode allows you to write a program simply by choosing your technique and the speed. Its that easy!

Write your own firing programs with up to 8 Segments using Ramp and Hold. Now you can store up to 12 programs.

Built in Diagnostics give you or our technicians the ability to diagnose kiln problems with just a few button presses.

The Alarm feature allows you to set a temperature alarm that will notify you when the kiln is at peak temperature.

Adjust temperatures or hold times while the kiln is firing using Add Time or Add Temp or simply press Anneal Now to set your project and begin annealing it.

Use the Delay Start feature to fire the kiln when it is convenient for you to be there when the kiln reaches temperature.

Current Sensing Technology

Skutt is one of the few brands that installs a Current Sensor in every KilnMaster Kiln. This allows you to read the Amperage of each section of the kiln as well as the Voltage and Voltage Under Load.

Now with the touch of a few buttons you can give those readings over the phone to your kiln repair technician so they can troubleshoot the problem and make sure they have the correct parts when they come out for the repair. This Saves Time and Money.

Prior to the use of these current sensors someone would have to come to your house and test the amperage and voltage inside the control box with live wires exposed. This system is Much Safer.

Sectional Design

Moving – Imagine trying to move a kiln into the basement or through a narrow door without being able to break it down into sections.

Repair – No more standing on your head in the kiln to replace those bottom elements or removing every brick in the kiln to get to the one you want to replace. Just remove the control box, unhook the buckles and place the section you want to work on on a table.

Replacement – We hope nothing really bad happens to your kiln but if it does, isnt nice to know you can replace one bad section instead of the whole kiln?

Balanced Elements

A large amount of the heat you lose in your kiln passes to through the lid and slab of your kiln. To compensate for this, Skutt directs more heat to these areas when they design the elements. The fact that we have twice the element grooves in our kilns gives us more design flexibility than some of our competitors.

It also gives you more loading options since it is always recommended to have at least one element radiating between each layer of shelves. Oh and by the way, twice the grooves means you get twice the amount of element wire, which means each element doesnt have to work as hard, which means longer element life! Whew!

Zone Control
Thermocouple in each section of the kiln allows controller to control each section separately to even out temperature variations top to bottom.
Critical when fusing on multiple shelves and annealing large blown vessels.
Works in conjunction with balanced elements to ensure firing efficiency.
The Thermocouple
Thin-walled inconel cover equals faster reaction time and higher accuracy.
Easy and quick to replace.
GM818, GM1018. and GM1227 all come with Zone Control. Since these kilns are designed to fire on multiple levels we place a thermocouple in each section to keep the temperature uniform from top to bottom.
The Warranty
Unlike most warranties, Skutts covers Parts AND Labor.
Never Pro-Rated.
Serviced by the most extensive, knowledgeable and talented distributor network in the industry.
Backed by a company whose mission statement is We help you make great things. When your kiln is down, you cant make great things.
And So Much More!
When you are buying a kiln, you are not just buying the equipment, you are also buying the service that comes before and after the sale. From the moment Skutt cuts that first brick to the day you open the box, to the day you are ready to retire it, Skutt’s reputation is on the line and we take that very seriously.
