L&L DLH11-D Test Kiln 120 Volts, 18 Amps, Cone 6

DLH11-D Test Kiln

Doll & Test Kiln

KEY SPECS
Small (0.5 cubic feet)
Genesis Mini Touchscreen Control
Cone 6, 2230F, 1220C
120 Volts
18 Amps

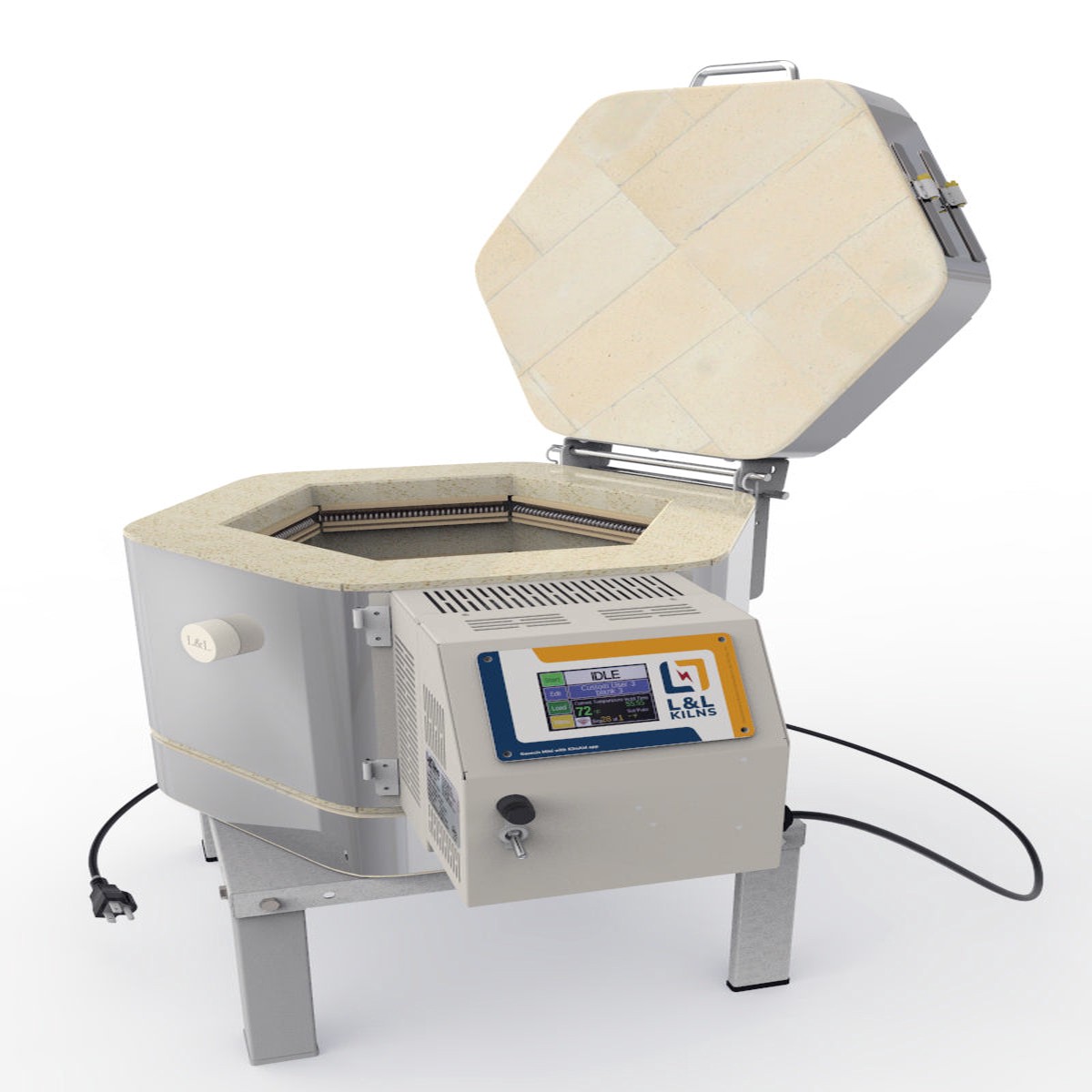

Model DLH11-D Doll/Test Kiln with a Genesis Mini Touchscreen Controller. Kiln comes with hard ceramic element holders, a protected thermocouple, a strong solid-top stand, and a solid peephole plug. 11″ Diam x 9″ High (0.5 cu ft). 2-1/2″ K23 brick. 120 volts, 18 amps. Cone 6. Includes NEMA 5-20 plug. C-MET-us listed in the USA & Canada.

NOTE: The 120-volt versions should not be used for high production (more than once a week) to their maximum temperature range – the element life will not be acceptable under those conditions. 208-volt and 240-volt versions are rated to Cone 10 under high production conditions.

Includes Genesis-Mini Touchscreen Control

Download a One-Sheet Product Electrical and Specification Sheet(PDF)

• Insulation: 2-1/2″ K23 Firebrick
• Sections: One section
• Inside Dimensions: 11.00″ Diameter x 9.00″ High (27.94 cm Diameter x 22.86 cm High)
• Outside Dimensions: 24.00″ Wide x 21.00″ Deep x 40.00″ High (60.96 cm Wide x 53.34 cm Deep x 101.6 cm High)
• Weight: 95 lbs (43 kg)
