Skutt GM1014 Glass Kiln

Original price was: $2,999.00.Current price is: $145.00.

All kilns ship free! Smaller kilns ship via UPS Ground and larger kilns ship via truck. For more info click here. If you are in...

Categories:
  • Secure Payment Processing
  • Fast & Reliable Delivery
  • Easy Returns & Exchange

All kilns ship free!

Smaller kilns ship via UPS Ground and larger kilns ship via truck.
For more info click here.


If you are in the St. Louis area our staff will DELIVER your kiln!
Did you know ALL of our full time staff members are factory trained kiln technicians?

We are not just a website, we are a brick and mortar retail store that has been in St. Louis for over 20 years.

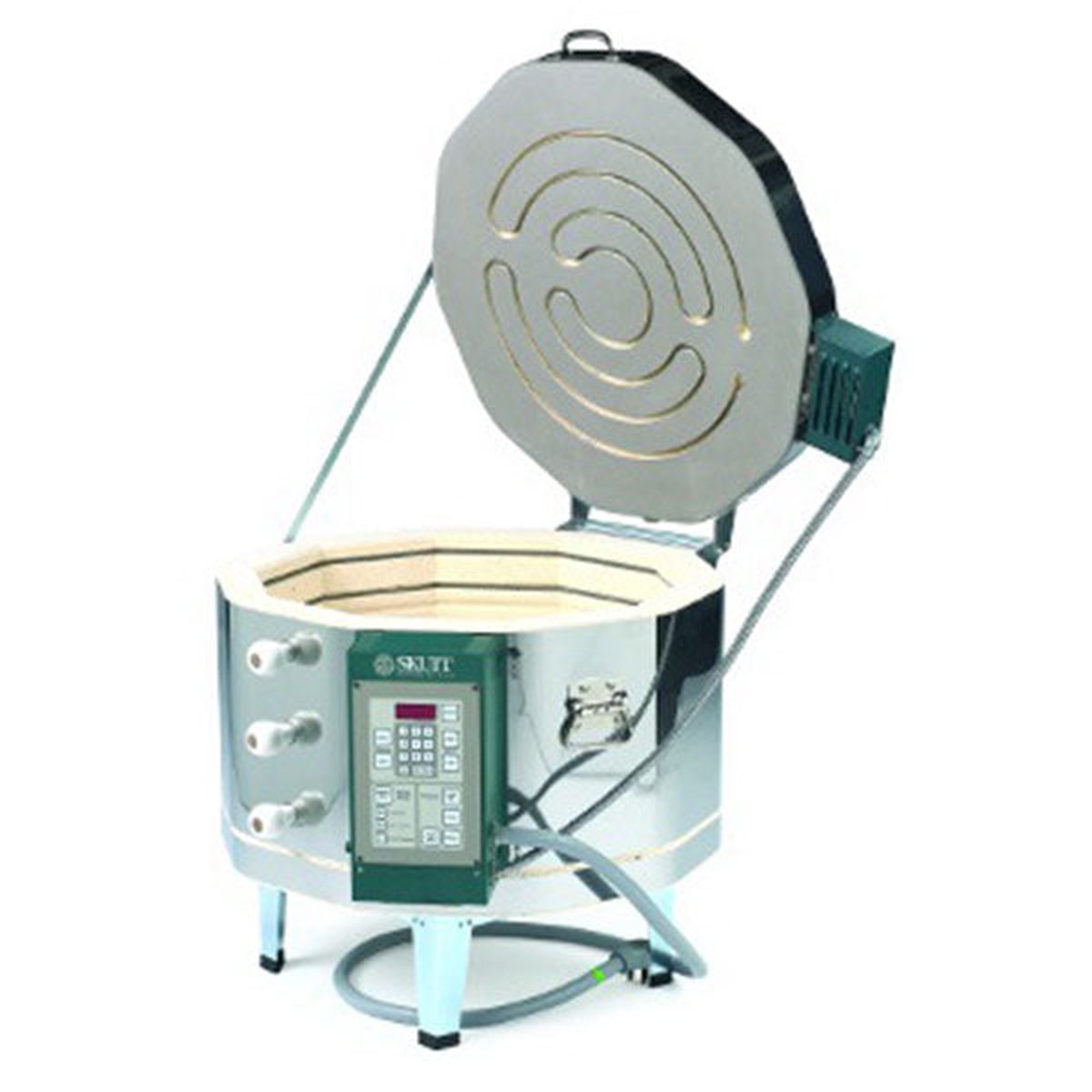

About the Skutt GM1014 Studio Series Glass Kiln

Perfect Studio Size – This is Skutts most popular kiln in the Studio Series. Its 23″ wide chamber with 14″ depth can fit the majority of projects most studio artists create.

The top and side firing elements of the GM1014 make this kiln fire very evenly allowing for glass projects to heat at a uniform rate. The Studio Series kilns are amoung the most popular amoung serious home fusers. Their ecenomical price coupled with their large firing chambers make them flexible and affordable.

Controller – Sophisticated, Yet Easy to Use
Use of of Skutt’s built in programs or customize your own.

Current Sensing Technology

Skutt is one of the few brands that installs a Current Sensor in every GlassMaster Kiln.

Sectional Design
Makes moving, repair and installation much easier.

Balanced Elements
To compensate for heat loss through the lid and slab, Skutt directs more heat to these areas when they design the elements.

The Thermocouple
Low mass Type-K thermocouple

The GM1014 Furniture Kit Includes:
1 – 19.5″ x 19.5″ x 5/8″ Thick (10-Sided) Shelf
4 – 5″ Posts

Electrical Specifications – Skutt GM1014
Phase Voltage Amps Max. Temp. Cu. Ft. Height Opening Shipping Weight Copper Wire Size Breaker Size NEMA Receptacle Config
1 240 34 1800 3.5 13.5″ 23.5″ 180 LBS 8 50 6-50
1 208 39.1 1800 3.5 13.5″ 23.5″ 180 LBS 8 50 6-50
Download a specification sheet for the Skutt GM1014 240V 1Phase
Download a specification sheet for the Skutt GM1014 208V 1Phase
Download the complete Skutt Glass Kiln Color Brochure with Electrical Specs.(PDF 2.1MB) Need technical specs on installing a kiln? Here’s the brochrue for you. This covers everything from venting and hvac to flooring and electrical specs. (PDF .5MB) Make the smart choice brochure from Skutt. Skutt is the number one selling kiln in America. Find out why. (PDF .5MB)

Sophisticated, Yet Easy to Use Controller

GlassFire Mode allows you to write a program simply by choosing your technique and the speed. Its that easy!

Write your own firing programs with up to 8 Segments using Ramp and Hold. Now you can store up to 12 programs.

Built in Diagnostics give you or our technicians the ability to diagnose kiln problems with just a few button presses.

The Alarm feature allows you to set a temperature alarm that will notify you when the kiln is at peak temperature.

Adjust temperatures or hold times while the kiln is firing using Add Time or Add Temp or simply press Anneal Now to set your project and begin annealing it.

Use the Delay Start feature to fire the kiln when it is convenient for you to be there when the kiln reaches temperature.

Current Sensing Technology

Skutt is one of the few brands that installs a Current Sensor in every KilnMaster Kiln. This allows you to read the Amperage of each section of the kiln as well as the Voltage and Voltage Under Load.

Now with the touch of a few buttons you can give those readings over the phone to your kiln repair technician so they can troubleshoot the problem and make sure they have the correct parts when they come out for the repair. This Saves Time and Money.

Prior to the use of these current sensors someone would have to come to your house and test the amperage and voltage inside the control box with live wires exposed. This system is Much Safer.

The Thermocouple
Exposed Thermocouple equals faster reaction time and higher accuracy.
Inexpensive, plus we give you an extra one when you buy your kiln.
Easy and quick to replace.
Type S (Platinum) Upgrades Available.

Balanced Elements
As most of you probably already know, glass is very susceptible to uneven heating. The more uneven the heat is in the kiln chamber, the slower you need to fire the kiln. Side fired kiln owners understand this, and are willing to trade the disadvantages of having to slow their programs down for advantages of being able to fire on multiple levels.

Our Studio Kiln Series have lid elements and side elements. This does not mean you can fire on multiple levels. The side elements are there to replenish heat on the bottom of the kiln. This not only keeps the shelf warm (which is important), it also provides for uniform heat top to bottom for artists working with deep molds and drop molds.

The Warranty
Unlike most warranties, Skutts covers Parts AND Labor.
Never Pro-Rated.
Serviced by the most extensive, knowledgeable and talented distributor network in the industry.
Backed by a company whose mission statement is We help you make great things. When your kiln is down, you cant make great things.

Sectional Design

Moving – Imagine trying to move a kiln into the basement or through a narrow door without being able to break it down into sections.

Repair – No more standing on your head in the kiln to replace those bottom elements or removing every brick in the kiln to get to the one you want to replace. Just remove the control box, unhook the buckles and place the section you want to work on on a table.

Replacement – We hope nothing really bad happens to your kiln but if it does, isnt nice to know you can replace one bad section instead of the whole kiln?

The Lid Lifter
Optional on the GM1014
Lift 100lbs with ease!
All stainless construction.
Easy and safe to tension.
Adjustable Rolling Stand
Most Skutt Kilns come with a stand but often times it is nice to be able to roll the kiln out of the way when not in use or to clean under. Now Skutt makes a heavy duty rolling stand for most of it’s kiln models.
And So Much More!
When you are buying a kiln, you are not just buying the equipment, you are also buying the service that comes before and after the sale. From the moment Skutt cuts that first brick to the day you open the box, to the day you are ready to retire it, Skutt’s reputation is on the line and we take that very seriously.< td>
